    4236 Differential Probe Discontinued see N1000A

    MSRP:
    Now: $0.00
    (You save )
    (No reviews yet) Write a Review
    Width:
    8.00 (in)
    Height:
    3.00 (in)
    Depth:
    11.00 (in)

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Linkedin
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Differential Probe For Power Measurement- Model 4236 (Discontinued -Suggested replacement Model N1000A)

    The 4236 meets EN61010 Category III requirements and is capable of making measurements of floating signals in power electronic circuits with +1% accuracy.

    Features

    -High Accuracy +1%
    -Best CMRR in Power Measurement Probes
    -Smallest Size Safety Certified
    Applications
    -Precise Power Semiconductor Device Measurement
    -Switching Power Supply Design
    -Precise Measurement of Power Converter Precise Measurement of Motor Drive

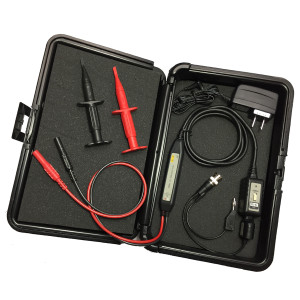

    Included
    -Red & Black Sprung Hooks
    -Calibration Certificate
    -9 VDC Adapter
    -Black Storage Box
    Product image


    Calibration Procedures

    User Manual

    Technical Data Sheet



    Optional 4200 Series Accessories


      Included with Probe

    Black Storage Case
     &
    9VDC Adapter

          Model 4236 Specifications
    Bandwidth DC to 50 MHz (-3dB)
    Attenuation Ratio 1/100
    Accuracy +/-1%
    Rise Time <7ns
    Input Impedance 4 Mohm/7pF each side to ground
    Input Voltage*
    -Category
    -Differential Input Range
    -Common Mode Range
    -Absolute Max. Voltage (Differential or Common Mode)

    CAT II
    +/-700V (DC + Peak AC)
    600Vrms and +/-1400V (DC + Peak AC)
    600Vrms and +/-1400V (DC + Peak AC)
    Output Voltage
    -Swing (into 50 kOhm load)
    -Offset (typical)
    -Noise (typical)

    +7V
    <+1mV
    0.3mVrms
    -Source Impedance (typical) 50 Ohm (for using 1 Mohm input system oscilloscope)
    CMRR (typical) -90dB @ 60 Hz, -55dB @ 1 Mhz
    Ambient Operating Temperature -10 to 40 degree centigrade
    Ambient Storage Temperature -30 to 70 degree centigrade
    Ambient Operating Humidity Up to 85% RH
    Ambient Storage Humidity Up to 85% RH
    Length of BNC Cables 49"
    Length of Input Leads 20"
    Power Requirement Options** Included- 9VDC adapter ,
    Optional- Power leads or Removable battery pack (4xAA cells)
    Weight 0.4 lb
    Dimensions (LxWxH) 4 1/2" x 1" x 1/2"

    *Voltage limit is the lesser of the DC+Peak AC and RMS values.**
    a. The supplied voltage must be less than 16V and greater than 3.3V, otherwise the probe could be damaged or cant be operated properly.
    b.For wrong polarity of power sources, a built-in circuit will protect the probe and no danger or damage will occur.
    c. When the voltage of the cells become too low, the power indicator on the panel will dim and then distinguish.
