Product Description

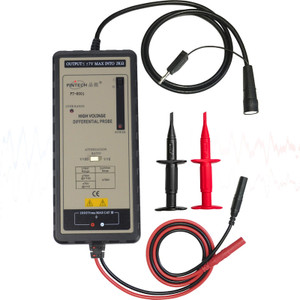

Differential Probe for Power Management- Model PT-8001 (Suggested replacement for 4232)
- Bandwidth 25 MHz
- Attenuation X10/X100.
- Max measuring voltage 700V p-p AC, 350V
- DC Power supply: battery and power adapter
- Accuracy:2%
- Compatible with any oscilloscope, standard BNC interface.
|
Applications Features Cost Included |
|
|
Model PT-8001 Specifications
| Bandwidth | 25MHz |
| Accuracy | ±2% |
| Attenuation Ratio | 1:10/100 |
| Input Impedance | 4MΩ//5.5 p F each side ground |
| Output Voltage | |
| -Swing(into 50 KΩ load) | ±7V |
| -Offset(typical) | ＜±5mV |
| -Noise（typical） | 0.7mV rms |
| Power Requirements | |
| -Standard | 4×AA cells or 6V DC adapter |
| -Options | Power leads |
| Weigh | 400g (probe and PVC jacket) |
| Dimension(L×W×H) | 186mm×83mm×38mm |
| Model | PT-8001 |
| CMRR(typical) | -86dB@50Hz,-66dB@20KHz |
| Differential Input Voltage（Vp-p） | 70V@1/10700V@1/100 |
| Common Mode Voltage（Vp-p） | 700V@1/10 ＆ 1/100 |
| Absolute Max .Input(Each side to ground) | CAT II 1000V,CAT Ⅲ 600V |
| Features | Up to 700V（Vp-p） Differential and Common Mode /Safety Certified /Economical Cost |
| Applications | ·Switching Power Supply Design ·Motor Drive Design ·Electronic Ballast Design ·CRT Display Design |
Calibration Differential Probes
The Pintech probes that we offer do not need to be Calibrated after purchasing.
At the factory they have been Mechanically zero-adjusted before shipping.
It’s less than 1mV. Mechanical zero-adjusting and will not change while using.
