Product Description

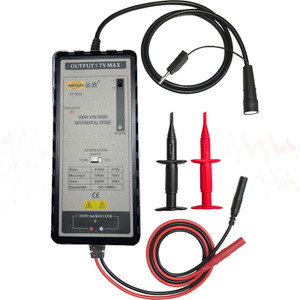

Differential Probe for High Voltage Power Measurement- Model PT-8010 (Suggested replacement for P/N 4241)
|
Features Applications
|
 |
|
|
PT-8010 Specifications |
|
|
Model |
PT-8010 |
|
Bandwidth |
DC-70MHz |
|
Attenuation |
X1000,X100 |
|
Accuracy |
±2% |
|
Input Voltage range |
< +700V for X100 |
|
Permitted max input voltage |
Max differential voltage voltage: 7000V(DC+AC PEAK) Max common mode voltage : 2500Vrms |
|
Input Impedance |
Each side : 10MΩ/2 PF Between side: 20MΩ/1 PF |
|
Output Voltage |
< + 7000V |
|
Output Impedance |
50Ω |
|
Rise Time |
5ns |
|
Rejected rate on common mode |
50Hz:>-80dB; 20 KHz:>-66dB |
|
Power Supply |
6V DC power Supply (Included) 4ea AA batteries (not included) |
|
Consumption |
0.3A max |
|
Features: |
|
|
1.Up to7000V(（Vp-p）)Differential |
|
|
2.Bandwidth up to 70MHz |
|
|
3. Safety Certificate |
|
|
4.Over range Indicator |
|
Calibration Differential Probes
The Pintech probes that we offer do not need to be Calibrated after purchasing.
At the factory they have been Mechanically zero-adjusted before shipping.
It’s less than 1mV. Mechanical zero-adjusting and will not change while using.
