    9109 Pin & Socket Test Lead Kit

    MSRP:
    Now: $89.90
    (You save )
    (2 reviews) Write a Review

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Linkedin
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Pin & Socket Adapter Test Lead Kit

    The pin & socket adapter kit is used to test  hard to reach contacts on multi pin & socket connections. The insulated adapters protect against shorting or contact damage. The kit comes with 48" 18 gauge flexible & heat resistance silicone leads. The 14 adapters are flexible and bend to make multi connections easier.
    Made in USA- Probe Master Inc.

    • 16 piece kit
    • Gold Plated Round Pins & Sockets
    • Flexible Tips
    • Banana Jack- Nickel Plated
    • Adapter Insulation- PVC
    • Silicone Test Leads, 48" 18 ga
    • Voltage max is 60 V DC

    Kits Available:

    9109S - Straight Retractable  Banana Plugs Both ends (Shown)
    9109R - Rt. Angle Banana Plug to Straight Banana plug

    Each Test lead kit Includes:

    • One Red and one Black set of each Pin & Socket (shown below)
    • Red and Black 48" Test Lead

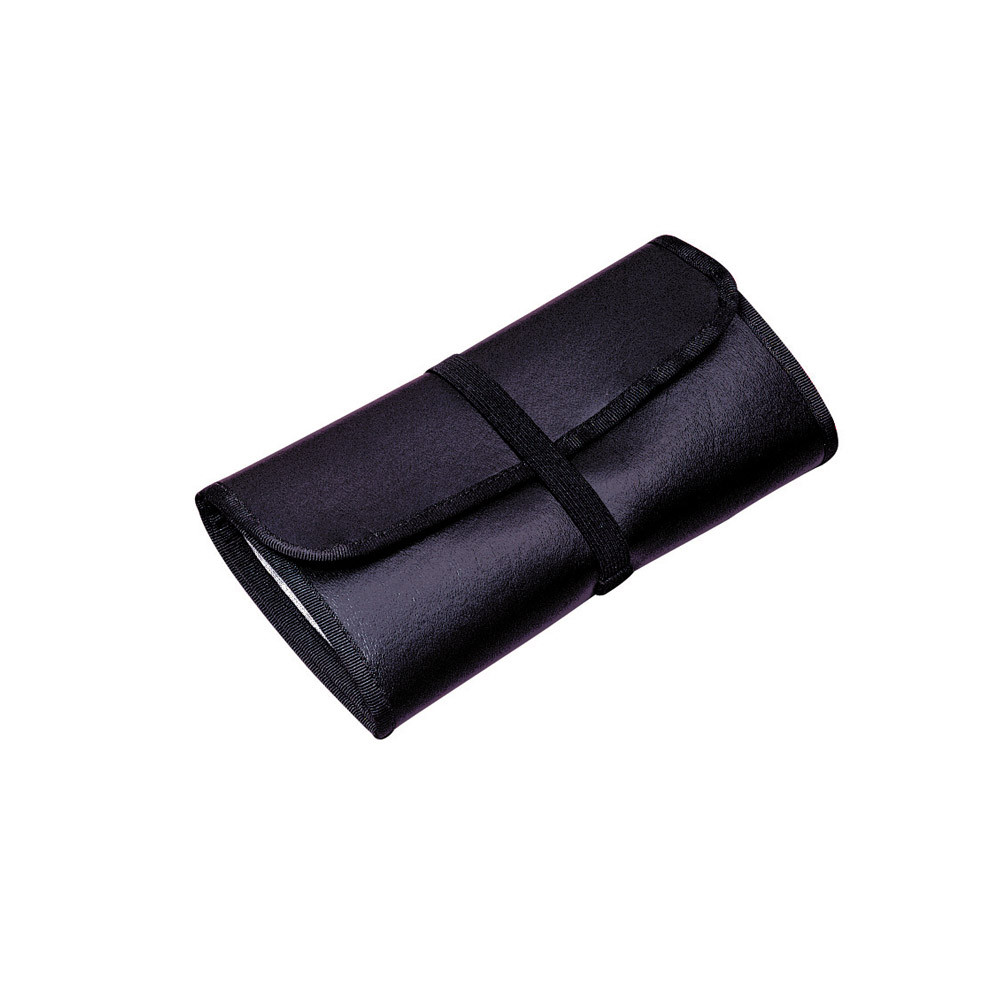

    • Black Vinyl Pouch

    Technical Data Sheet

    Model Size Contact Rating
    9180-1 Male Pin .030" 22 5 Amps
    9180-2 Male  Pin  .040" 20 7.5 Amps
    9180-3 Male Pin  .063" 16 13 Amps
    9180-4 Male Pin .093" 12 23 Amps
    9181-1 Female Socket .030" 22 5 Amps
    9181-2 Female Socket .040" 20 7.5 Amps
    9181-3 Female Socket.063" 16 13 Amps
    9109S- Retractable Banana Plug


    9109R- RT. Angle Banana Plug


    (9109R Fits Fluke Meters)

    Note:
    Pin & socket adapters may be purchased separate on our 9100 series accessories.
    Model 9181-1 also fits .025" square pins.
